  • HC‑ZT1200

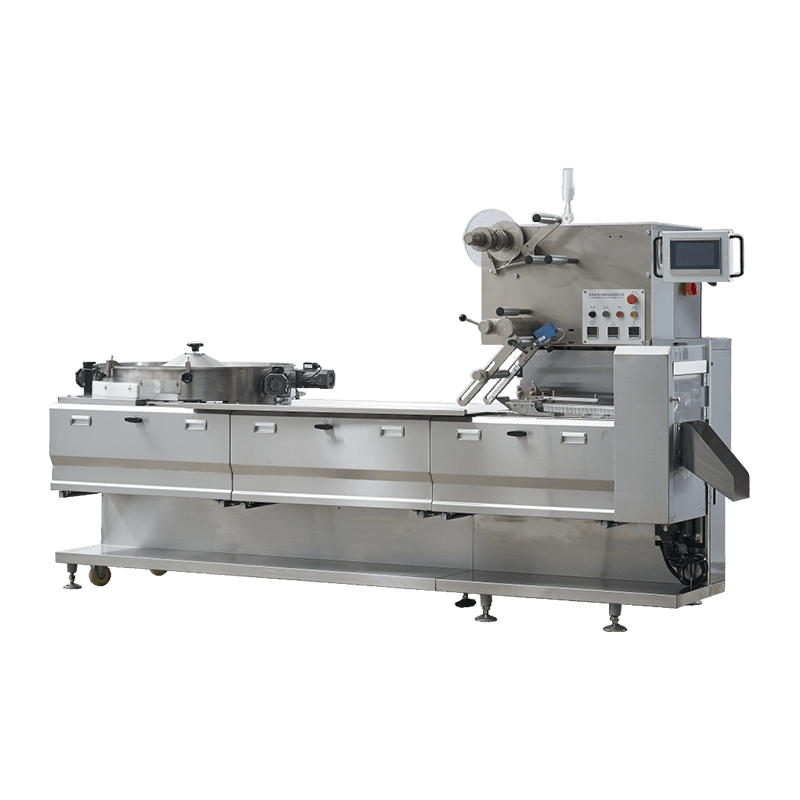

    High-Speed Pillow Packing Machine

    High-Speed Pillow Packing Machine

Product Overview

The High-Speed Pillow Packing Machine is a continuous food packaging machine for candy, confectionery, and other solid products with regular shapes. It uses roll film to form heat-sealed pillow packs and is suitable for round, disc-shaped, spherical, square, rectangular, oval, oblong, cylindrical, and similar products.

With a packaging speed of up to 1,300 packages/min, the High-Speed Pillow Packing Machine is suitable for high-output packaging applications. The horizontal flow wrapper format is suited to continuous pillow-pack production. A full-servo control system supports smooth operation and low operating noise, while the oversized product feeding tray provides a large feeding area for product arranging and continuous supply.

The machine uses a horizontal flow wrapping process in which products are fed into the film, wrapped, heat-sealed, and cut into individual pillow packs. This flow wrapping process is widely used for continuous pillow-pack production. Individual machine sections can be operated separately, making adjustment, troubleshooting, and routine servicing more convenient.

High-Speed Pillow Packing Machine

Technical Specifications

Model HC‑ZT1200
Packaging Speed 50–1,300 packages/min
Product Shape Round/disc, spherical, square, rectangular, oval, oblong, cylindrical, and other regular shapes
Finished Bag Length 45–120 mm
Wrapping Material OPP, CPP, aluminized PET film, aluminum‑plastic laminates, paper‑plastic laminates, and other heat‑sealable single‑layer or laminated materials
Total Weight 950 kg
Total Power 5.5 kW
Power Supply 220 V, 50 Hz
Dimensions 3,450 × 1,300 × 1,670 mm
Certification CE Approved

Delivery & After-Sales Support

Standard machine lead time

 7–10 working days after deposit

Customized machine lead time

 1–3 months depending on solution complexity

Production inspection

 Customers are notified after production for inspection before shipment

Packing

 Wooden-case packing

Logistics

 Shipment arrangements can be provided; freight is paid by the customer

Installation and commissioning

 Guidance provided for equipment installation and commissioning

Operator training

 Includes changeover, parameter setting, and daily maintenance guidance

Technical support

 Remote technical support after delivery

Spare parts

 Spare and wear parts supply

Warranty

 12 months for the complete machine from the acceptance date, subject to applicable warranty terms and exclusions
Contact Us
PREV：Multi-Function Pillow Packing MachineNEXT：High-Speed Horizontal Flow Wrapper
Application

This Pillow Packing Machine is suitable for high-speed individual packaging of solid food products with regular shapes, including candy and confectionery. As a Pillow Packaging Machine, it combines continuous product feeding with film forming, heat sealing, and cutting.

It can handle round/disc-shaped, spherical, square, rectangular, oval, oblong, cylindrical, and other regular solid products that can be continuously fed and positioned before film forming, sealing, and cutting.

For confectionery manufacturers, this machine can be used as a Candy Packaging Machine or Confectionery Packaging Machine for continuous pillow-pack production.

Key Features Customization OEM/ODM/OBM FAQ

Key Features

High-speed packaging – up to 1,300 packages/min, depending on product, package format, and operating conditions

Full-servo control system – coordinated control of the main machine functions

Oversized product feeding tray – provides a large feeding area for continuous product arranging and supply

Independent machine sections – convenient for adjustment, troubleshooting, and servicing

Durable machine structure – suitable for continuous production

Optional automatic feeding hopper – available according to product and feeding requirements

Optional stainless steel machine enclosure – available for customized equipment configurations

Heat-sealed pillow-pack formation – produces individually sealed packs from roll film

Low-noise operation – smooth machine running during continuous packaging

Horizontal flow wrapping configuration – suitable for continuous feeding, wrapping, sealing, and cutting

Customization

The Pillow Packing Machine can be configured according to product characteristics, packaging requirements, and production-line conditions.

Available customization options include:

  • Automatic feeding hopper
  • Stainless steel machine enclosure
  • Product detection and reject devices
  • Counting and production statistics
  • Feeding system configuration
  • Cutting knives and forming units based on product dimensions
  • Customized touchscreen interface and functions
  • Multiple recipe storage
  • Production-line connection and interconnection
  • Electrical component brands

For quotation, please provide the product type, product dimensions and shape, product photos or drawings if available, target packaging speed, packaging film and package requirements, coding or printing requirements, nitrogen filling or air evacuation requirements, available installation space, and upstream/downstream equipment information. This information allows us to confirm the suitable machine configuration.

OEM, ODM & OBM Services

We provide OEM, ODM, and OBM services for food packaging machinery and packaging automation projects.

OEM services support manufacturing based on customer-specified machine requirements, configurations, and production conditions. ODM services cover equipment development and engineering based on the customer's product characteristics, packaging process, and automation requirements. OBM services support customers who require packaging machinery manufactured under their own brand and commercial specifications.

Our manufacturing capabilities cover R&D, equipment design, sheet-metal fabrication, electrical control integration, machine assembly, testing, and complete-machine commissioning. We support individual machine orders as well as customized packaging equipment projects.

FAQ

1. What products can the High-Speed Pillow Packing Machine handle?

It is suitable for candy, confectionery, and other solid food products with regular shapes, including round, disc-shaped, spherical, square, rectangular, oval, oblong, and cylindrical products.

2. What is the maximum packaging speed?

The rated packaging speed is up to 1,300 packages/min. Actual output depends on the product, package format, feeding conditions, and operating requirements.

3. What packaging materials can be used?

The machine supports OPP, CPP, aluminized PET film, aluminum-plastic laminates, paper-plastic laminates, and other heat-sealable single-layer or laminated materials.

4. Can an automatic feeding system be added?

Yes. An automatic feeding hopper and other suitable feeding configurations can be specified according to the product and production process.

5. Can the Horizontal Flow Wrapper package different product shapes?

Yes. The machine is suitable for various regular solid shapes, including round/disc, spherical, square, rectangular, oval, oblong, and cylindrical products. Product dimensions and packaging requirements should be confirmed before quotation.

6. Can this Flow Wrapper be integrated into an existing production line?

Yes. Production-line connection can be configured according to the upstream and downstream equipment, product flow, and available installation space. The Flow Wrapper can be matched to the product feeding and conveying arrangement of the existing line.
