Home / Products / Food Processing Machines / Confectionery Processing Machines / Casing Gummy Cutting Machine

  • HC‑JQ500

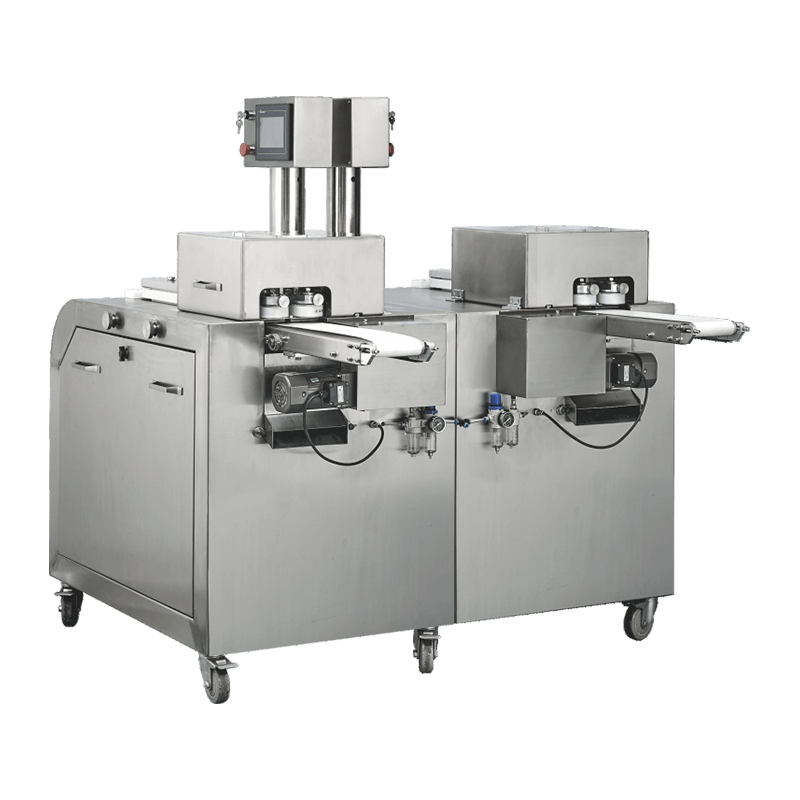

    Casing Gummy Cutting Machine

    Casing Gummy Cutting Machine

Product Overview

The Casing Gummy Cutting Machine is an automated cutting machine for continuous processing of gummy products made with collagen casings. It is designed for food and nutraceutical manufacturers that need consistent cutting of casing-wrapped gummy products after the forming process.

The machine uses a dual-servo control system with servo motors as the main drive. Its integrated control architecture supports flexible programming, stable operation, and convenient adjustment of production parameters. Key components are manufactured using machining centers to maintain component accuracy and movement precision.

The machine structure combines high-quality alloy steel and stainless steel components. Its simple construction and independently adjustable operating sections make routine adjustment, troubleshooting, and servicing more convenient.

Casing Gummy Cutting Machine

Technical Specifications

Model HC‑JQ500
Production Speed 100–450 cuts/min
Application Collagen casing
Total Power 4 kW
Power Supply 220 V, 50 Hz
Dimensions 1,456 × 1,547 × 1,498 mm
Total Weight 395 kg
Certification CE Approved

Delivery & After-Sales Support

Standard machines

 7–10 working days after deposit

Customized machines

 1–3 months depending on solution complexity

Production inspection

 Customers are notified after completion for inspection before shipment

Packaging

 Wooden-case packing

Logistics

 Shipping arrangements can be provided; freight is paid by the customer

Installation

 Installation guidance and commissioning support

Training

 Operator training, parameter setting, and daily operation guidance

Technical support

 Remote technical support after installation

Spare parts

 Spare and wear parts supply

Warranty

 12-month complete-machine warranty from the acceptance date, subject to applicable warranty terms and exclusions
Contact Us
PREV：No previous articleNEXT：No next article
Application

The Gummy Cutting Machine is mainly used for gummy products produced in collagen casings.

Typical application:

  1. Collagen-casing gummy products
  2. Casing gummies
  3. Gummy candy products requiring continuous cutting
  4. Food and nutraceutical gummy products using collagen casings

The machine is suitable for production environments where casing-wrapped gummy products need to be continuously cut into individual pieces at a controlled production rate.

Key Features Customization OEM/ODM/OBM FAQ

Key Features

Dual-servo control system – Servo motors provide the main drive for controlled and coordinated cutting operation.

Flexible programmable control – The control system supports adjustable operating parameters according to production requirements.

Stable automated operation – Integrated servo control combines automation and programmable machine operation.

Precision-machined key components – Critical components are manufactured using machining centers to maintain dimensional accuracy and movement precision.

Alloy steel and stainless steel construction – Selected materials are used for key machine components and product-contact or structural requirements.

Simple machine structure – Straightforward construction facilitates operation, adjustment, and servicing.

Independent machine sections – Individual sections can be operated or adjusted separately for easier troubleshooting and commissioning.

Continuous cutting – Production speed ranges from 100 to 450 cuts/min, depending on the product and operating conditions.

Compact equipment footprint – The machine measures 1,456 × 1,547 × 1,498 mm and weighs approximately 395 kg.

Customization

The Casing Gummy Cutting Machine can be configured according to the gummy product, collagen casing, cutting requirements, and production conditions.

Available configuration and customization can include:

  • Cutting parameters according to product requirements
  • Servo control configuration
  • Machine operating and control functions
  • Product feeding and equipment connection
  • Production-line connection and equipment interconnection
  • Electrical component brands

For quotation, please provide the gummy product type, collagen casing information, product dimensions, required cutting length or format, target production speed, product photos or drawings if available, and information about any upstream or downstream equipment to be connected.

OEM, ODM & OBM Services

We provide OEM, ODM, and OBM services for food processing machinery and customized automation equipment.

OEM services support manufacturing based on customer-specified equipment requirements, configurations, and production conditions.

ODM services cover equipment development and engineering based on the customer's product characteristics, processing requirements, and automation needs.

OBM services support customers who require equipment manufactured under their own brand and commercial specifications.

Our manufacturing capabilities cover R&D, equipment design, sheet-metal fabrication, electrical control integration, machine assembly, testing, and complete-machine commissioning. We support both individual machine orders and customized food processing equipment projects.

FAQ

1. What products can this Casing Gummy Cutting Machine process?

It is mainly intended for gummy products made with collagen casings, including casing gummies and other suitable gummy products requiring continuous cutting.

2. What is the production speed?

The specified production speed is 100–450 cuts/min. Actual output depends on the gummy product, casing characteristics, cutting requirements, and operating conditions.

3. What type of casing is required?

The specified application is collagen casing. The suitability of a particular casing should be confirmed according to its material characteristics, dimensions, and the gummy production process.

4. What is the purpose of the dual-servo system?

The dual-servo system provides the main machine drive and coordinated control of the cutting process. It also allows operating parameters to be adjusted through the control system.

5. Can the machine be connected to an existing gummy production line?

Yes. Production-line connection can be configured according to the upstream forming or processing equipment, product transfer method, available installation space, and downstream requirements.

6. What information is needed for a quotation?

Please provide the gummy product type, collagen casing information, product dimensions, required cutting length or format, target production speed, product photos or drawings if available, and upstream/downstream equipment information.
